# A Penrose Tiling

Julian D. A. Wiseman

Contents: Publication history; Introduction; The code and its output; The Algorithm. Also see the PostScript program itself and the PDF file generated therefrom.

Publication history: only at www.jdawiseman.com/papers/trivia/penrose_tiling.html. Usual disclaimer and copyright terms apply.

## Introduction

A Penrose tiling is described by Wikipedia as being “a nonperiodic tiling generated by an aperiodic set of prototiles named after Sir Roger Penrose”. In 1997 the author tiled his roof terrace with a Penrose tiling of rhombi, and, to guide the laying of the tiles, needed to generate a picture. The code that made the picture, somewhat tidied, is published at www.jdawiseman.com/papers/trivia/penrose_tiling.ps.

## The code and its output

A PostScript program recursively generates the tiling, starting with one thin tile. The code has been used to produce a PDF file, showing the starting step and each subsequent step. Unfortunately PostScript limits the size of an array and of the stack to 216−1 items, so the PostScript as written cannot further recurse.

The number of rhombi in each step of the recursion, expressed as Fats + Thins = Total, is: 0 + 1 = 1; 2 + 2 = 4; 7 + 5 = 12; 20 + 10 = 30; 48 + 31 = 79; 126 + 80 = 206; 331 + 201 = 532; 864 + 537 = 1401; 2249 + 1386 = 3635; 5880 + 3650 = 9530; 15374 + 9500 = 24874; 40211 + 24821 = 65032. The output from the last of these steps should be sufficient for most practical purposes.

## Arithmetic

In the limit there are (1+√5)/2 ≈ 1.618 times as many fats as thins, each of which has an area bigger by the same ratio, so the fats become (5+√5)/10 ≈ 72.36% of the area, and the thins (5−√5)/10 ≈ 27.639%.

If the sides have unit length, the thins have area Sin[36°] = √((5−√5)/8) ≈ 0.587785; and the fats have area Sin[72°] = √((5+√5)/8) ≈ 0.9510565. So the average area is ½√(25−10√5) ≈ 0.81229924. So for a very large area, in which border tiny relative to non-border, the number of tiles is, approximately, the area in square units × 1.231.

## The Algorithm

At each recursion thin rhombi are replaced with two fats and two thins, and fat rhombi replaced with three fats and two thins. Then duplicate rhombi and those off the page are removed, to prevent purposeless growth in the size of the PDF file, and to allow extra recursions before reaching PostScript implementation limits. To facilitate swift finding of duplicates, the rhombi are kept in order on the stack, new non-duplicates being rolled into place. This sorting reduces run time from about O(n²) to O(n Ln[n]); and also causes the rhombi to be drawn on the page in order, top first to bottom last.

The painting of the rhombi is done in two passes, first an execform of the fat rhombi, then an execform of the thins. In some picture editing programs this simplifies selection of all the rhombi of one type. The immediately following page uses the same data, but instead of rendering the outside of the rhombi, shown are small arcs within. In any event, it is not difficult to alter the PostScript program to change the colours.

 — Julian D. A. WisemanMar 2010, Jan 2015, Nov 2017, and Aug 2018www.jdawiseman.com

## Afterwords

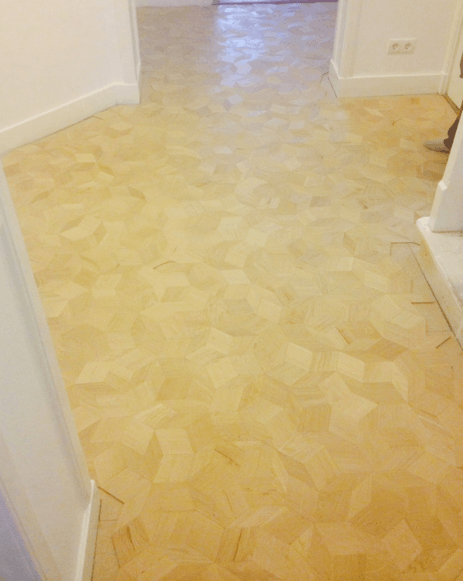

On 15th January 2015 an email was received from Maarten van Tol, saying that “… I wanted to create a Penrose floor in wood in my home. The floor is currently in final stages of construction, attached pics give an impression.

Thank you for sending the report: one of the pictures is on the right.

On 6 November 2017 in the Financial Times was an article London mayor unveils plans for traffic-free Oxford Street, below which I commented:

And do something witty with the ground: a very long Penrose tiling, the tiles’ sides being of length about a metre. Continue the tiling over the traffic cross routes, faded if necessary, so that it is continuous and unbroken.

It would attract both geeky and non-geeky tourists. www.jdawiseman.com/papers/trivia/penrose_tiling.html

Perhaps brightly coloured.

Readers are invited to support this proposal in whichever way they think most suitable.

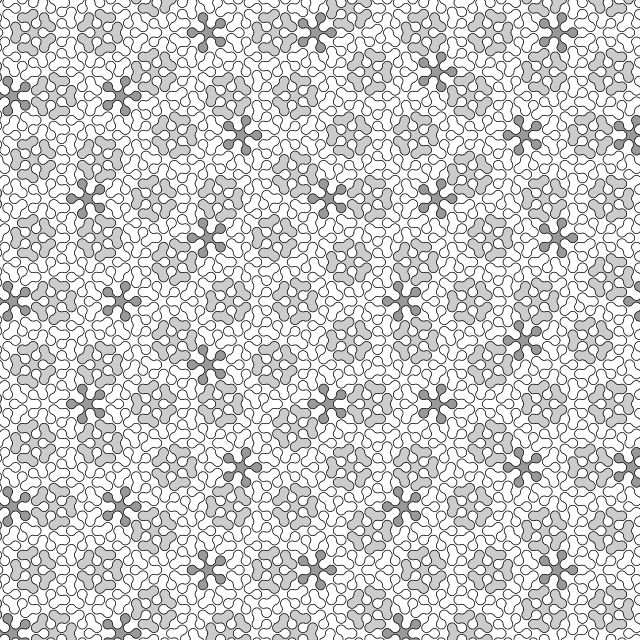

Extract from endpapers of Port Vintages (2018).

In late 2018 my book Port Vintages was privately published. Its endpapers (wikipedia) were a Penrose tiling, as a riff on an old-school marbling. I think extremely elegant, and you are welcome to re-use.

Please give credit on the copyright page, perhaps resembling “Endpapers by permission of J.  D. A. Wiseman, as first used in Port Vintages (2018).”

Those endpapers: www.jdawiseman.com/papers/trivia/PortVintages_EndPapers_20181021.pdf.

The second edition of Port Vintages has endpapers in colour. Again, you are welcome to re-use. And likewise, please give credit on the copyright page, perhaps resembling “Endpapers by permission of J.  D. A. Wiseman, as used in Port Vintages, second edition (2022).”

Autumn 2023, the new kitchen is not yet installed, but the tiling is done. Tiles, made by Sergio Sanchez of Concrete Etc, have an edge length of 150mm. In the centre of the floor are the wires that will go into the island. I love it: behold! (Ignore the camera-induced foreshortening: edges lengths are consistent; angles ∈ {36°, 72°, 108°, 144°}.)
